FIHLS – Façades Integrated Heating+Cooling, Ventilation and Sanitation

Duration: 06/2016 - 04/2020
Contracting Authority/ Sponsors: Federal Ministry of Economic Affairs and Climate Action (BMWK)
Project Partners: Beck und Heun GmbH, Westaflexwerk GmbH, KERMI GmbH
Website: LowEx-Bestand
Project Focus:

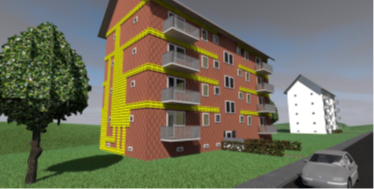

Virtual building with installation plan for façade-integrated ventilation ducts, which support horizontal fire barriers in combination with appropriate insulation material.
© Fraunhofer ISE
Virtual building with installation plan for façade-integrated ventilation ducts, which support horizontal fire barriers in combination with appropriate insulation material.(Fig.1)
Lithium silicate coated Liaver®.
© Fraunhofer ISE
Lithium silicate coated Liaver®. (Fig. 2)

The joint project “FIHLS” researched, developed and adapted building technology components for simple integration into the insulation level of the building envelope. The focus was on the refurbishment of residential buildings and on minimizing interventions in the building fabric. In conjunction with low-exergy systems for heat supply, this offers an extremely sensible technical refurbishment approach. Furthermore, it requires the development of minimally invasive refurbishment methods with the integration of heating and ventilation components in the façade, adapted space heating and the integration of decentralized residential ventilation systems. In this project, new types of distribution systems were investigated in combination with building envelope renovation, including insulation elements, mounting elements for windows, central and decentralized ventilation units and distribution systems in the façade.

In the joint project “FIHLS”, innovative building services components were researched for integration into the insulation layer of residential buildings to make refurbishments minimally invasive. The focus was on reducing interventions in the building fabric and the use of low-exergy systems for heat supply.

System analysis for façades with integrated heating and ventilation systems

First, market research and geometric analysis were carried out for façade-integrated technology. A virtual residential building (see Fig. 1) was used to develop and simulate the components. Fire protection assessments and standards were considered, and construction processes for façade ducts were tested.

© Kermin

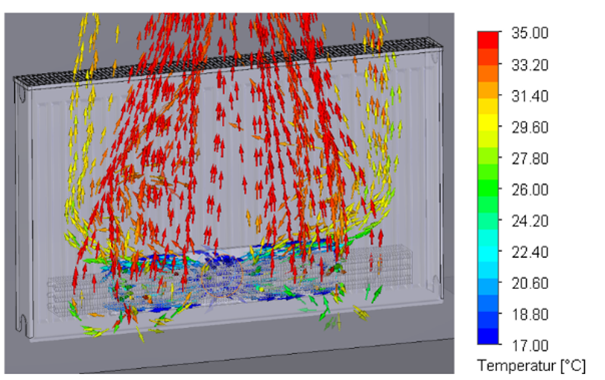

Simulation of a blown radiator with supply air connection via the façade.
© Fraunhofer ISE

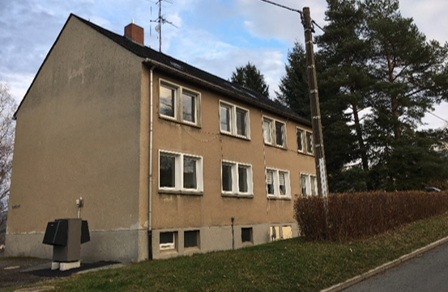

Demonstrationsobjekt der Wohnungsgesellschaft Adorf/Vogtl. mbH vor der begleiteten Sanierung.
© Fraunhofer ISE

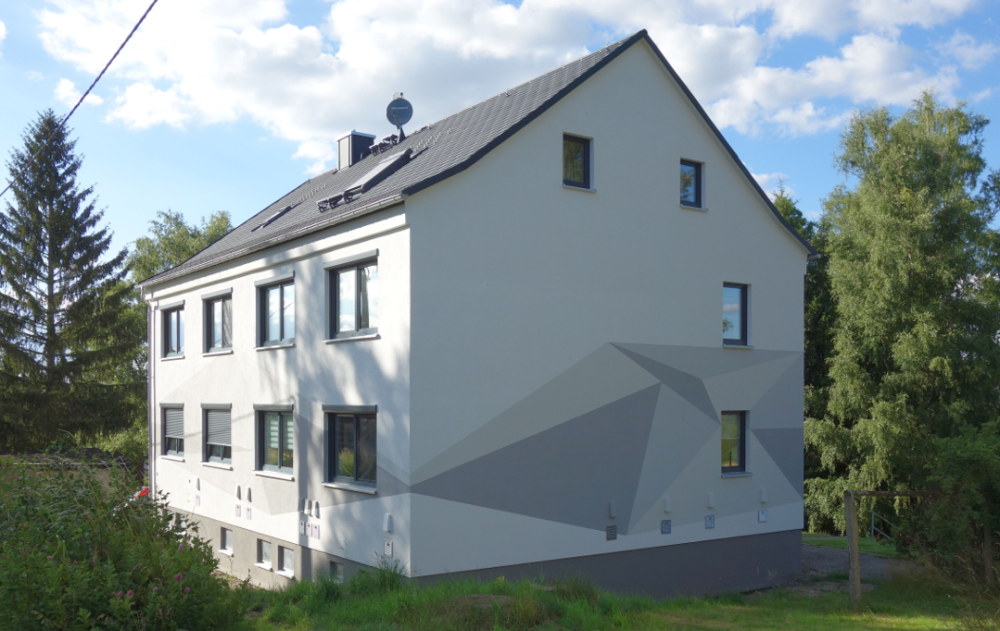

Demonstration property of Wohnungsgesellschaft Adorf/Vogtl. mbH after the accompanied refurbishment.
© Beck + Heun GmbH

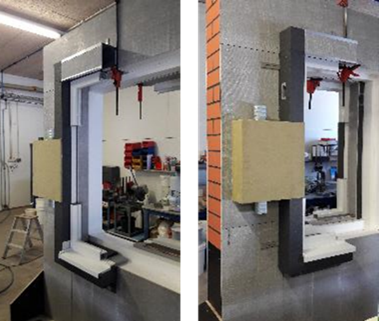

Functional samples for the installation of façade pipes and window frames. (Fig. 4)
© Westaflex

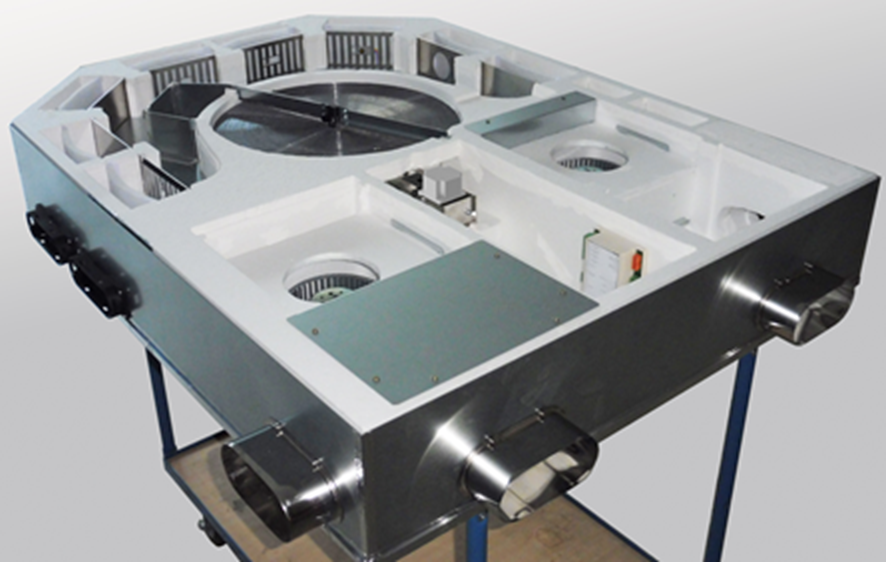

Functional sample of the central ventilation unit without housing cover. (Fig. 6)

Insulation material development

This was followed by the development of innovative insulation materials (see Fig. 2), which should achieve low thermal conductivity and a high fire behaviour class. Further development potential was identified in this area, which should be pursued further.

Technical components in the façade

In this part, façade-integrated heating and ventilation systems were developed, including a window module (see Fig. 4) with integrated air inlet and outlet. Various functional models were tested to optimize the combination of heating and ventilation. In addition, a central ventilation unit “SWIRL” (see Fig. 6) was developed. With this device and other decentralized ventilation devices, room-by-room control was made possible and innovative control concepts such as “matrix control” and “fuzzy logic” were implemented.

Demonstration

At the end of the project, the façade-integrated systems were installed and demonstrated in Adorf in the Vogtland region.

Sustainable Development Goals

The "FIHLS" research project contributes to achieving the sustainability goals in these areas:
