Laser-Matter Interaction

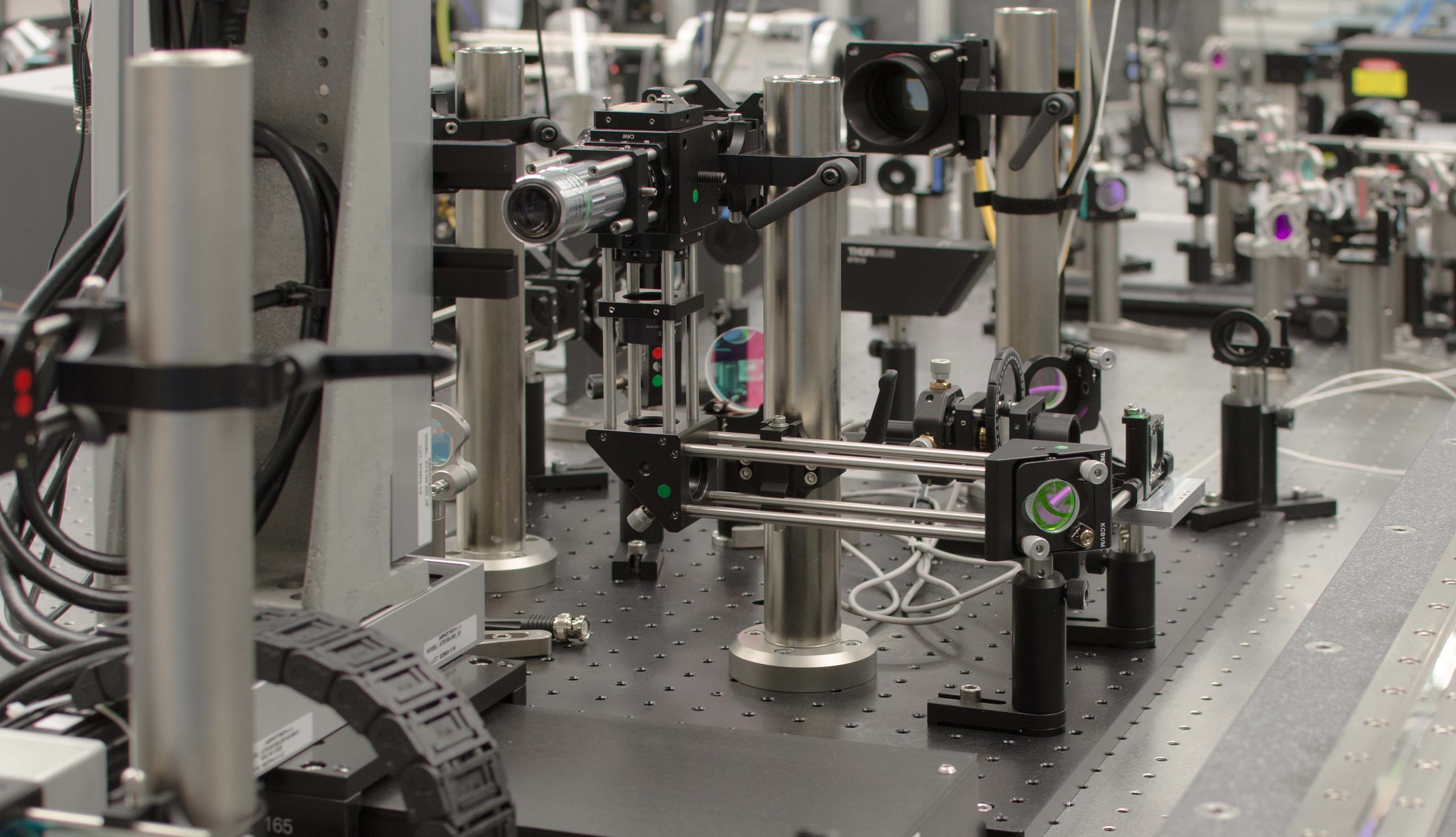

Setup for pump-probe investigations at Fraunhofer ISE.
© Fraunhofer ISE
Setup for pump-probe investigations at Fraunhofer ISE.

The development, optimization and industrialization of new manufacturing processes require a thorough understanding of the underlying mechanisms. Time-resolved measurements are essential to investigate the origin of undesired side effects during laser micromachining, such as laser-induced damage or incomplete layer ablation from solar cells. Many of these laser-matter interaction processes occur on ultrashort timescales (femto- to nanosecond range) and cannot be imaged using conventional cameras.

To investigate such ultrafast processes, the so-called pump-probe technique is used at Fraunhofer ISE. In this technique, a laser beam (pump laser) initially interacts with the material. The induced interaction with the material is scanned using a second, time-delayed laser pulse (probe laser). In this case, the time resolution is no longer limited by the properties of the detector, but rather by the pulse duration of the probe laser (typ. ≈ 200 fs).

Our service offer:

  • Time-resolved in-situ characterization of laser processes
  • Determination of linear and nonlinear refractive indices
  • Modeling of the interaction

Video: Laser Ablation of Silicon Nitride on Silicon

Privacy warning

With the click on the play button an external video from www.youtube.com is loaded and started. Your data is possible transferred and stored to third party. Do not start the video if you disagree. Find more about the youtube privacy statement under the following link: https://policies.google.com/privacy

Language: English | Duration: 0:15 Min.

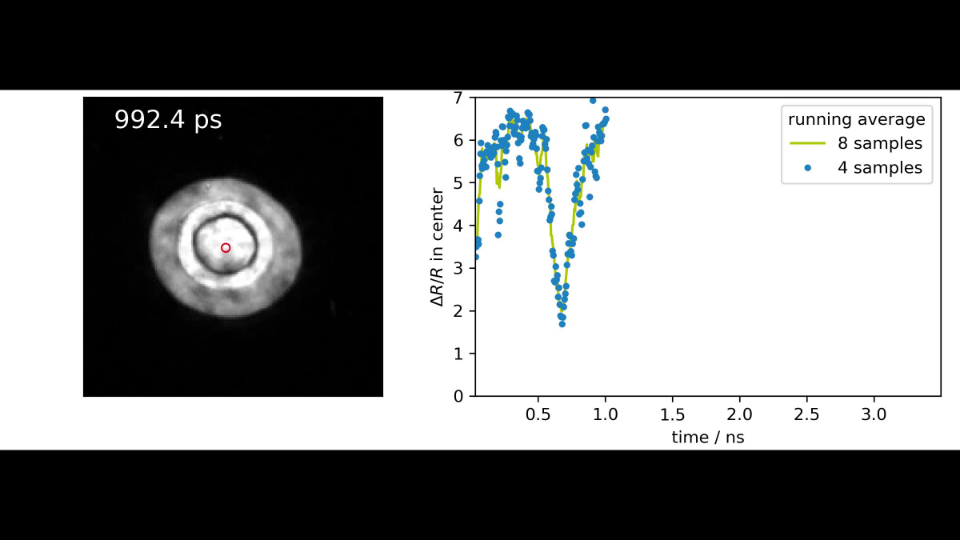

Pump-Probe imaging enables the analysis of ultrashort pulse laser ablation of a silicon nitride anti-reflection layer on crystalline silicon. This is one of the techniques that enables us to improve solar cell production technologies and efficiencies.

Left: Delay-dependent change of Newton rings which occur when a dielectric layer detaches from a silicon surface.

Right: Delay-dependent change in the reflectivity of the sample. If combined with model calculations, the delamination speed can be calculated from the experimental data.
