“Companies can use our new InP-on-GaAs substrates to manufacture high-efficiency devices”, explains Carmine Pellegrino, project manager at Fraunhofer ISE. ”However, it costs much less than InP and there are no limitations in terms of scalability to even 8-inch diameter wafers.”

The application of indium phosphide on gallium arsenide is challenging because defects occur during the growth of the indium phosphide, which can degrade the performance of the final device. The scientists were able to avoid this by incorporating a series of 'metamorphic buffer layers' and by subjecting the fully grown InP-on-GaAs wafer to a special chemical-mechanical polishing step. After this, the wafers are shiny with very low surface roughness and defect densities below 5*10⁶ cm^-2.

The researchers tested the material quality and performance of the new InP-on-GaAs wafers and compared them to standard indium phosphide substrates. “The results are extremely promising,” says Frank Dimroth, head of the III-V photovoltaics department at Fraunhofer ISE. “Photovoltaic cells fabricated on our engineered wafers achieve open-circuit voltages comparable to reference devices on prime InP wafers. The performance is consistently uniform across the entire 6-inch wafer, enabling reliable, high-yield production”.

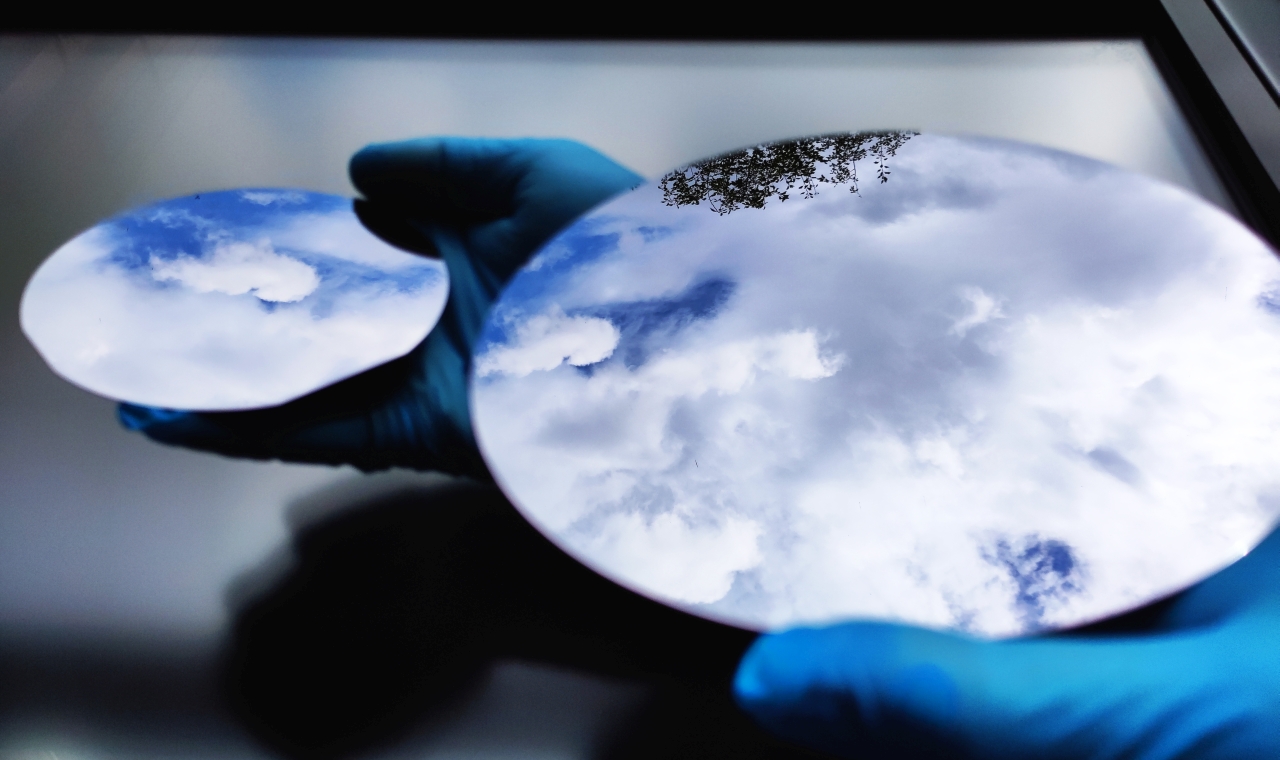

As part of a series of experiments, the research team have so far produced InP-on-GaAs wafers with a diameter of 4 and 6 inches, with no obstacles foreseen for a future transition to 8-inch. Classic indium phosphide substrates, on the other hand, are currently available in sizes from 2 to 4 inches, with a 6-inch version only recently becoming available. This is because gallium arsenide substrates are more robust and formats with a diameter of up to 8 inches are already well established in the semiconductor industry. The higher stability of gallium arsenide also makes it possible to produce thinner wafers, which means that less material is used, and additional costs can be saved.

“Our technology naturally benefits from having gallium arsenide as a basis,” adds Carmine Pellegrino. ”The production costs of the new substrates are significantly lower than those of indium phosphide wafers, with a savings potential up to 80 percent in mass production according to our first calculations. In addition, our approach bypasses constraints on the supply of indium phosphide.”
