SHK4FutureEnergysystems – A Tiny House as a Mobile Showroom for Modern Building Technology

Duration: April 2019 - December 2020
Contracting Authority/ Sponsors:
Federal Ministry for Economic Affairs and Energy (BMWi)
Sponsors: ASD Automatic Storage Device GmbH, Consolar Solare Energiesysteme GmbH, WATERKOTTE GmbH; KPS Energieeffizienz GmbH, JOCO GmbH, Sikla GmbH, Zehnder GmbH
Project Partners: Hochschule Offenburg, Richard Fehrenbach Gewerbeschule, Handwerkskammer Freiburg
Projekt Focus:
SHK4FutureEnergysystems
© Hochschule Offenburg

The Project

Over six days, students from Offenburg University of Applied Sciences and vocational students from the Richard Fehrenbach Gewerbeschule (Richard Fehrenbach Vocational School) created an information point from a sea container as part of the "SHK4FutureEnergysystems" project initiated by Fraunhofer ISE, which highlights innovative supply technology elements and illustrates how they work for teaching and recruiting young talents in the field of sanitary, heating and air-conditioning. The result is an energy self-sufficient Tiny House with a smart networked and digitally controlled energy supply system.

The following elements of supply engineering are used in the information point:

  • Hybrid solar thermal and photovoltaic modules
  • Off-grid battery storage system
  • Reversible heat pump for heating and cooling
  • Control systems for surface temperatures of ceilings and floors
  • Decentralized ventilation system
  • Smart Home technology for monitoring energy flows

The implementation

The joint restructuring process of students and trainees was a central component of the overarching project EnEff2050Begleit on the subject of knowledge transfer between crafts and research.

The following short film gives an impression of the construction process and the entire project:

Privacy warning

With the click on the play button an external video from wwww.youtube.com is loaded and started. Your data is possible transferred and stored to third party. Do not start the video if you disagree. Find more about the youtube privacy statement under the following link: http://www.youtube.com/t/privacy_at_youtube

The usage

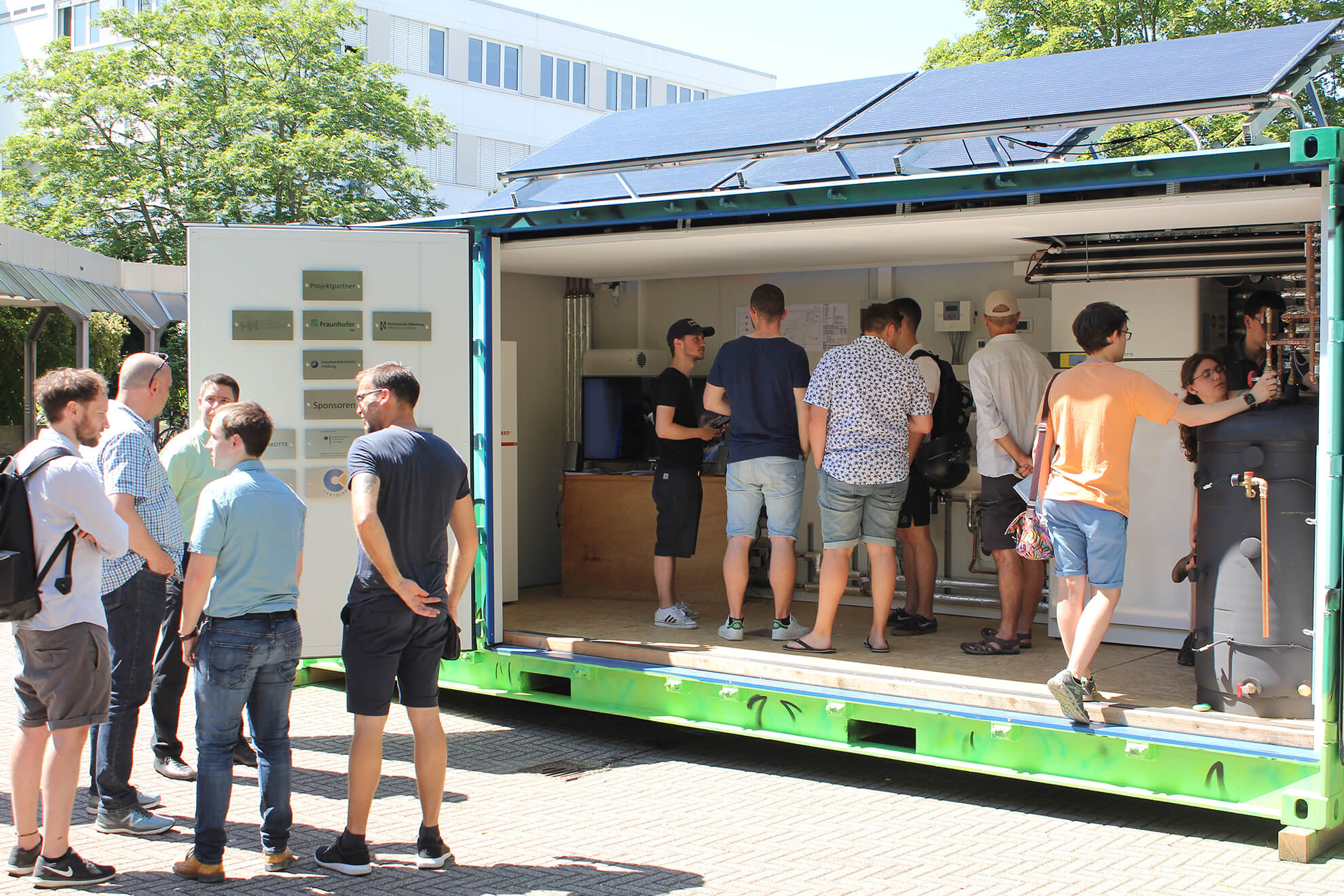

The information point is to be used to bring visitors closer to topics relating to energy system transformation in buildings. Due to its self-sufficient energy system and its transportability, it can be used flexibly. The special feature of the container is the combination of technical building installations, which are in real operation during events and guided tours to supply the container, and explanatory elements in the form of visualizations of the energy flows and videos of the container's construction. This gives visitors an interactive experience.

The information point is to be used primarily at trade fairs and events for vocational and study orientation. But also other purposes, such as events for craftsmen, planners and builders, are desired. On request, the project partners are also happy to offer guided tours of the Tiny House and lectures on building systems technology for school classes in the Upper Rhine region.

The proud participants of the project SHK4FutureEnergysystems in their self-equipped self-sufficient tiny-house.
© Handwerkskammer Freiburg
The proud participants of the project SHK4FutureEnergysystems in their self-equipped self-sufficient tiny-house.

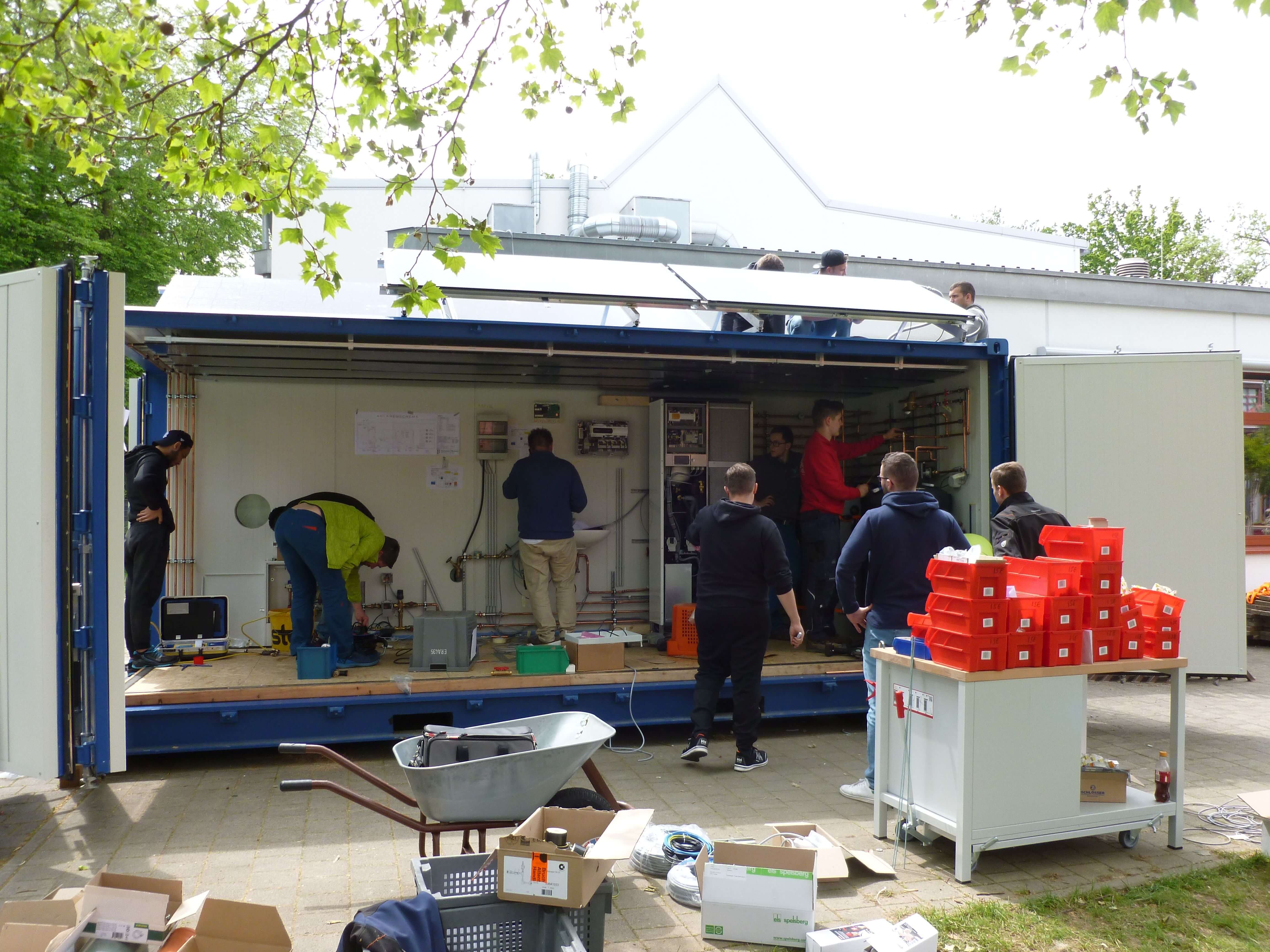

Impressions from the retrofit in Freiburg.
© Fraunhofer ISE
Impressions from the retrofit in Freiburg.

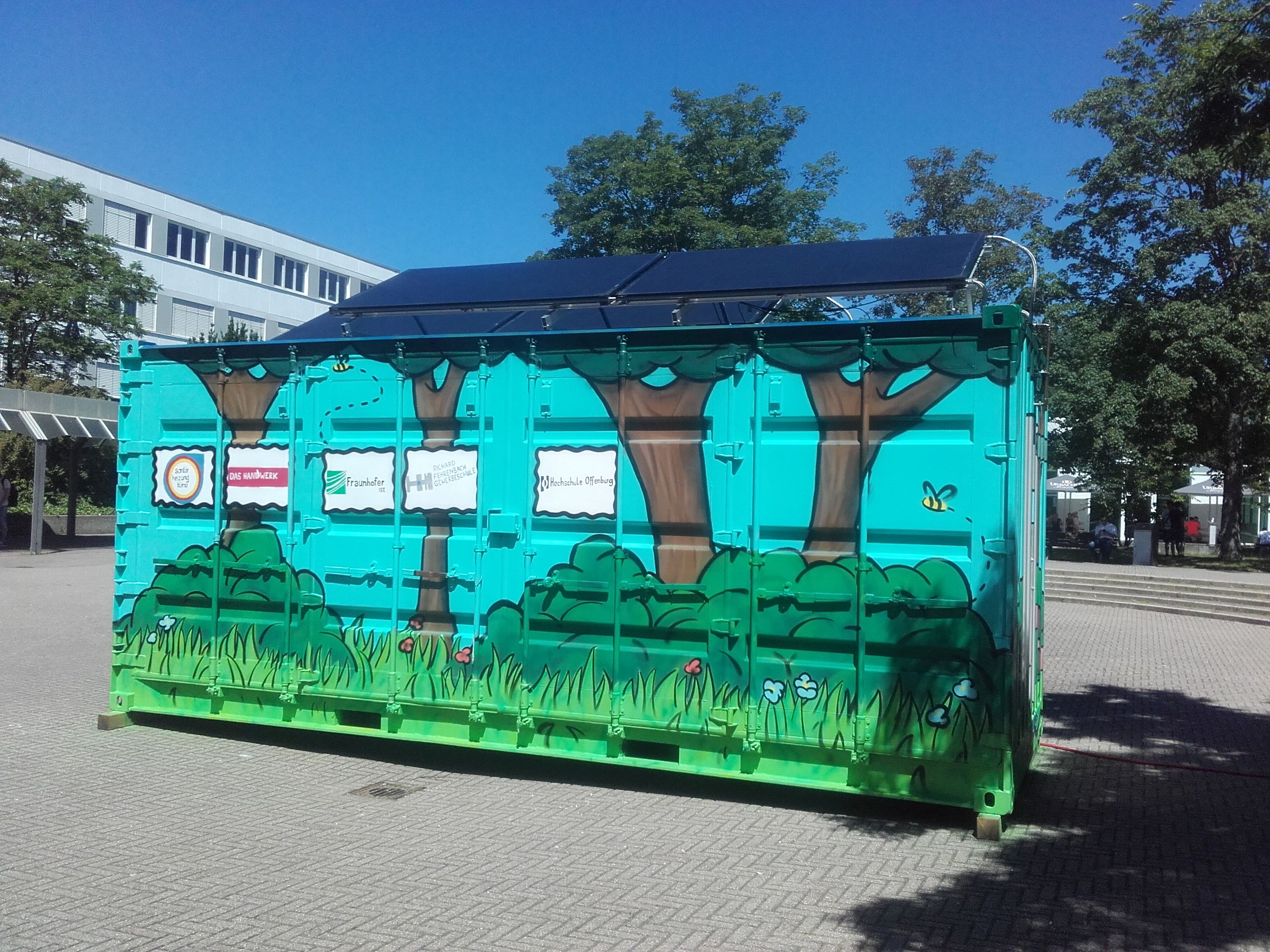

View of the retrofitted tiny-ouse/info-point.
© Fraunhofer ISE
View of the retrofitted tiny-ouse/info-point.
