Press Release #11

Levelized Cost of Electricity: Renewables Clearly Superior to Conventional Power Plants Due to Rising CO2 Prices

Researchers at the Fraunhofer Institute for Solar Energy Systems ISE have presented the newest edition of their study on the levelized cost of electricity (LCOE) of renewable power plants. The fifth edition of the study analyzes the current costs and forecasts the future cost development up to 2040 based on technology-specific learning rates and market scenarios. "Wind and solar power plants in Germany have significantly lower LCOE costs than conventional power plants. Due to the rising price of CO2 certificates, the cost competitiveness of even existing coal and gas-fired plants will further decrease in the coming years," says project head Dr. Christoph Kost.

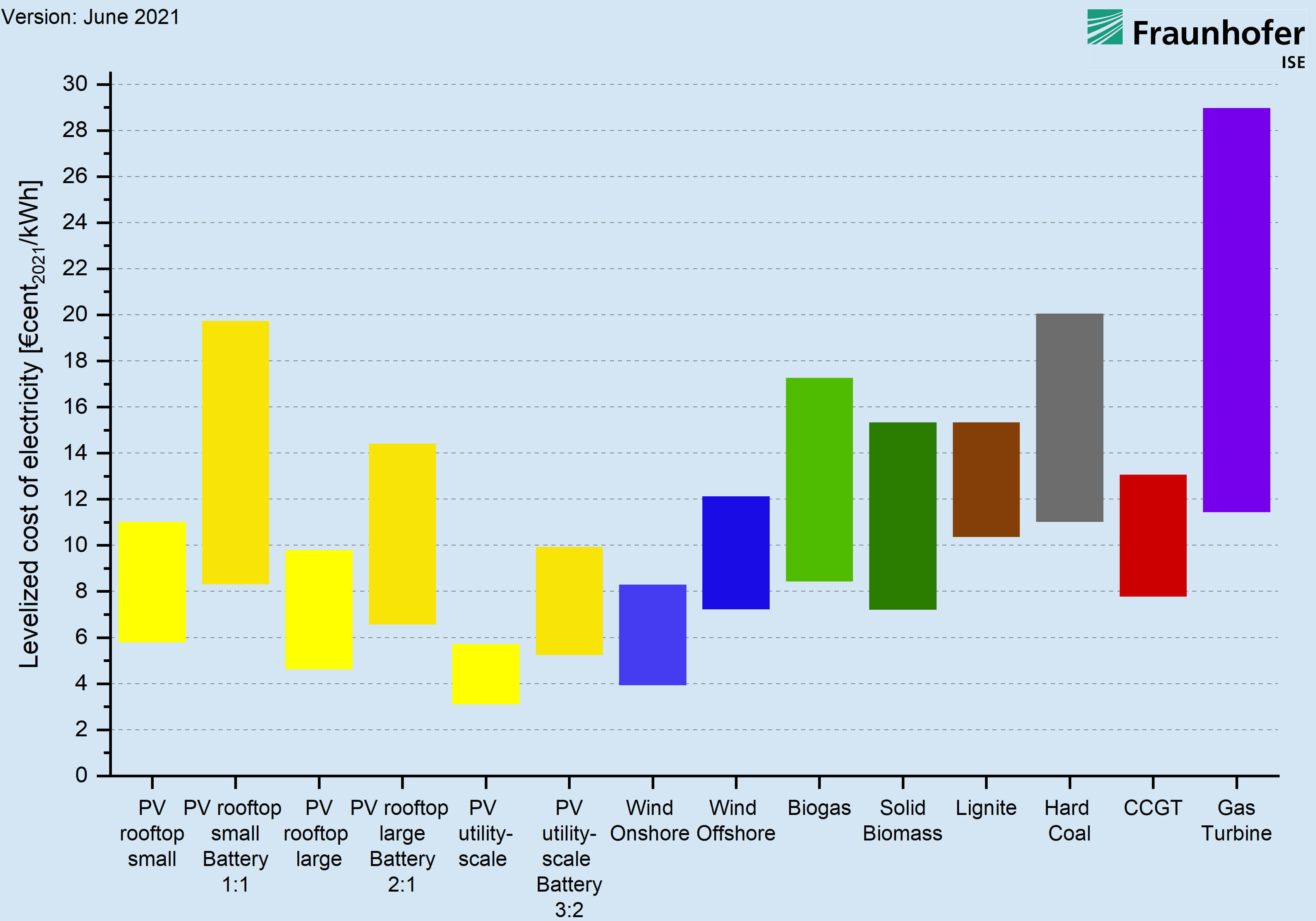

LCOE of renewable energy technologies and conventional power plants at locations in Germany
© Fraunhofer ISE
LCOE of renewable energy technologies and conventional power plants at locations in Germany in 2021. Specific plant costs are considered using a minimum and a maximum value for each technology. The ratio for hybrid PV-battery systems gives the PV power in kWp versus the useful battery capacity in kWh. The assumptions on irradiation and the development of the full load hours can be found in the study on page 14 ff.

Due to the intensified actions taken to protect the climate, the operating costs of conventional power plants are rising. At the same time, the levelized costs of electricity, particularly for photovoltaic plants, have continued to fall since the results of the last study were released in 2018. Currently, the LCOE of photovoltaics ranges from 3.12 to 11.01 €Cent /kWh, depending on the type of plant and the solar irradiation, and the specific plant costs range from 530 to 1600 €/kWp, depending on the plant type.

Photovoltaic systems with battery storage are a growing market in the German energy system and therefore were included in the study for the first time. Today the LCOE of hybrid PV-battery systems ranges from 5.24 to 19.72 €Cent /kWh. This wide cost range is due to the large price difference of the various battery systems. Battery storage provides additional value by contributing to security of supply as well as by stabilizing the feed-in curves, or battery discharge, during times of high energy demand.

In the case of wind power, the LCOE of onshore wind turbines ranges between 3.94 and 8.29 €Cent /kWh, making them the second cheapest technology for electricity generation today. This decrease is due to falling plant costs. Offshore wind turbines are significantly more expensive at 7.23 to 12.13 €Cent /kWh, despite the higher annual mean full load hours (FLH) of up to 4500 hours per year. The energy generation costs of offshore wind are higher because of the more costly installation, operating and financing (3000 to 4000 €/kW). The forecasts show that new conventional power plants built in Germany will not achieve an LCOE below 7.5 €Cent /kWh, taking the higher CO2 prices into account.



Forecast of the Levelized Cost of Electricity (LCOE) up to 2040

With further technological advances, the LCOE of PV systems, including roof-mounted, and of wind turbines in windy locations will be significantly lower than the average LCOE of all fossil fuel power plants by 2040.

Forecasts show that in 2040, the LCOE will be between 3.58 and 6.77 €Cent €Cent/kWh for small rooftop systems and between 1.92 and 3.51 €Cent €Cent/kWh for ground-mounted PV systems. As of 2024, the LCOE is expected to be below 10 €Cent €Cent/kWh for all PV systems (excluding the battery storage).  By 2040, the system costs are expected to fall below 350 €/kW for ground-mounted PV and range from 615 to 985 €/kW for small-scale PV.

In 2030, the cost of electricity generation from a PV-battery system is projected to be cheaper than a combined cycle power plant. In 2040, even small PV-battery systems are expected to achieve an LCOE between 5 and 12 €Cent €Cent/kWh.

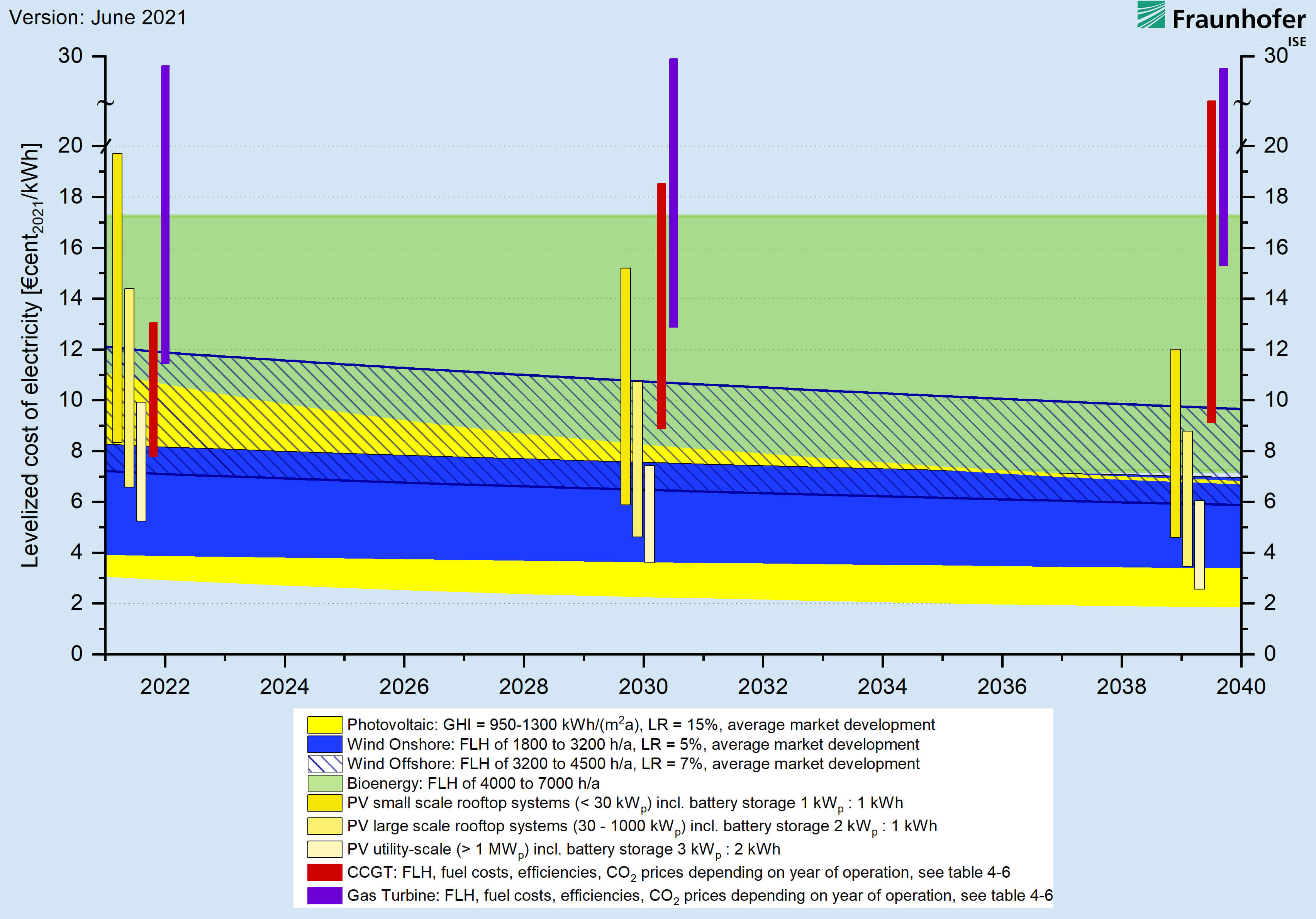

LCOE forecasts, based on learning curve model, for renewable energy technologies
© Fraunhofer ISE
LCOE forecasts, based on learning curve model, for renewable energy technologies and gas-fired power plants in Germany until 2040. The yearly LCOE value refers to one new plant in the reference year.

By 2030 New PV and Wind Installations Cheaper than Existing Conventional Power Plants

In the study, the research team at Fraunhofer ISE also compared the LCOE of new renewable power plants with the operating costs of existing conventional power plants. Forecasts show that in 2021, the LCOE of renewables are on the same level with the operating costs of conventional power plants, if not lower. Up to 2030, however, the operating costs of all existing fossil-fuel power plants continue to rise sharply, with forecasts predicting a CO2 price of over €100/t in 2030. "This cost increase means a highly dynamic market for new renewable power plants, as companies will rather invest in new renewable power plants than bear these high operating costs. However, it is necessary to ensure that sufficient area and power plant capacity for wind and PV plants is available," says Christoph Kost.

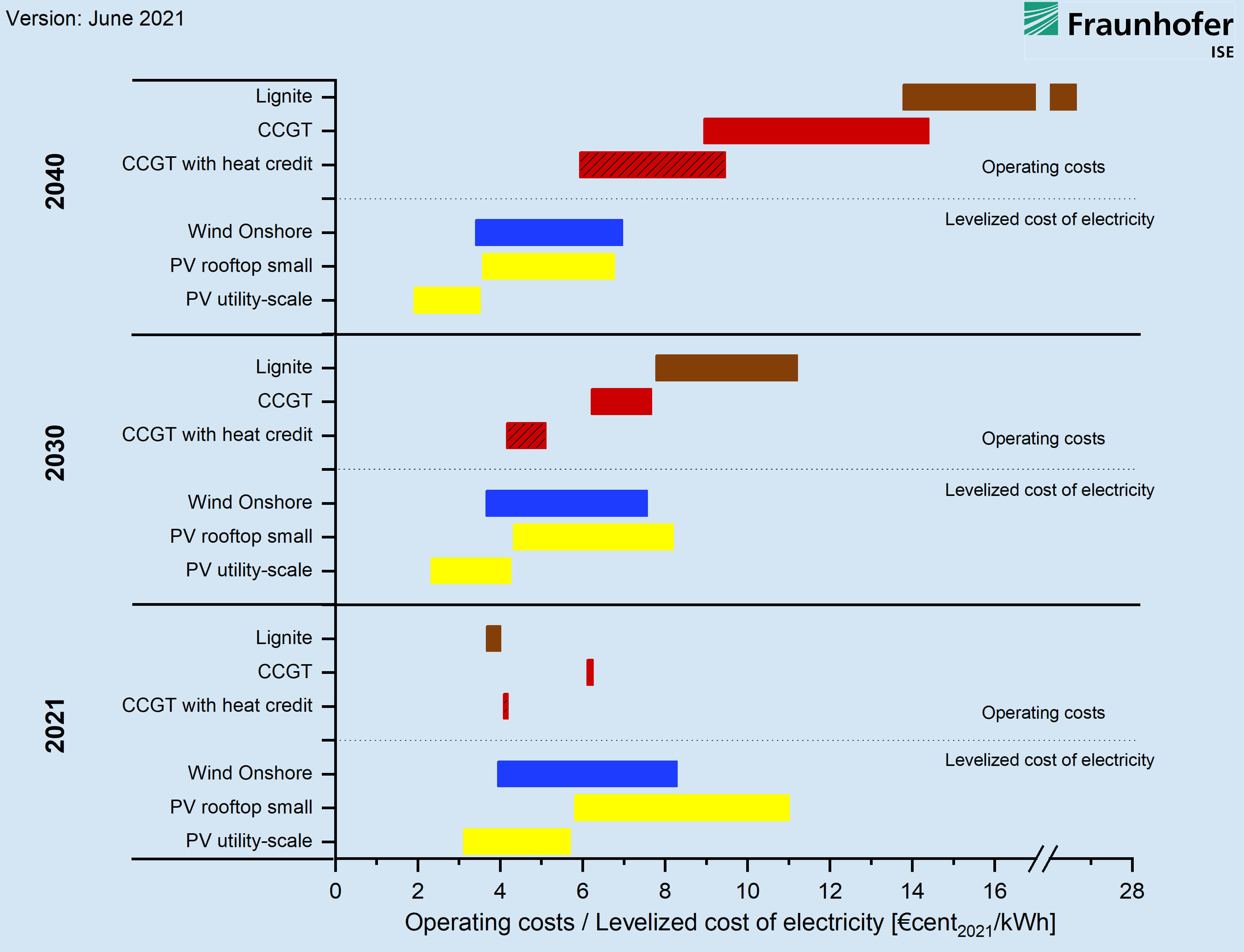

Comparison of the LCOE (levelized cost of electricity generation) from renewable energy technologies with the operating cost
© Fraunhofer ISE
Comparison of the LCOE (levelized cost of electricity generation) from renewable energy technologies with the operating cost of existing fossil fuel power plants in 2021, 2030 and 2040.
