DiGO – Distribution Grid Optimization

Duration: September 2018 - August 2021
Contracting Authority/ Sponsors: Federal Ministry for Economic Affairs and Energy (BMWi)
Project Partners: Stadtwerke Wolfhagen, Adapted Solutions
Project Focus:

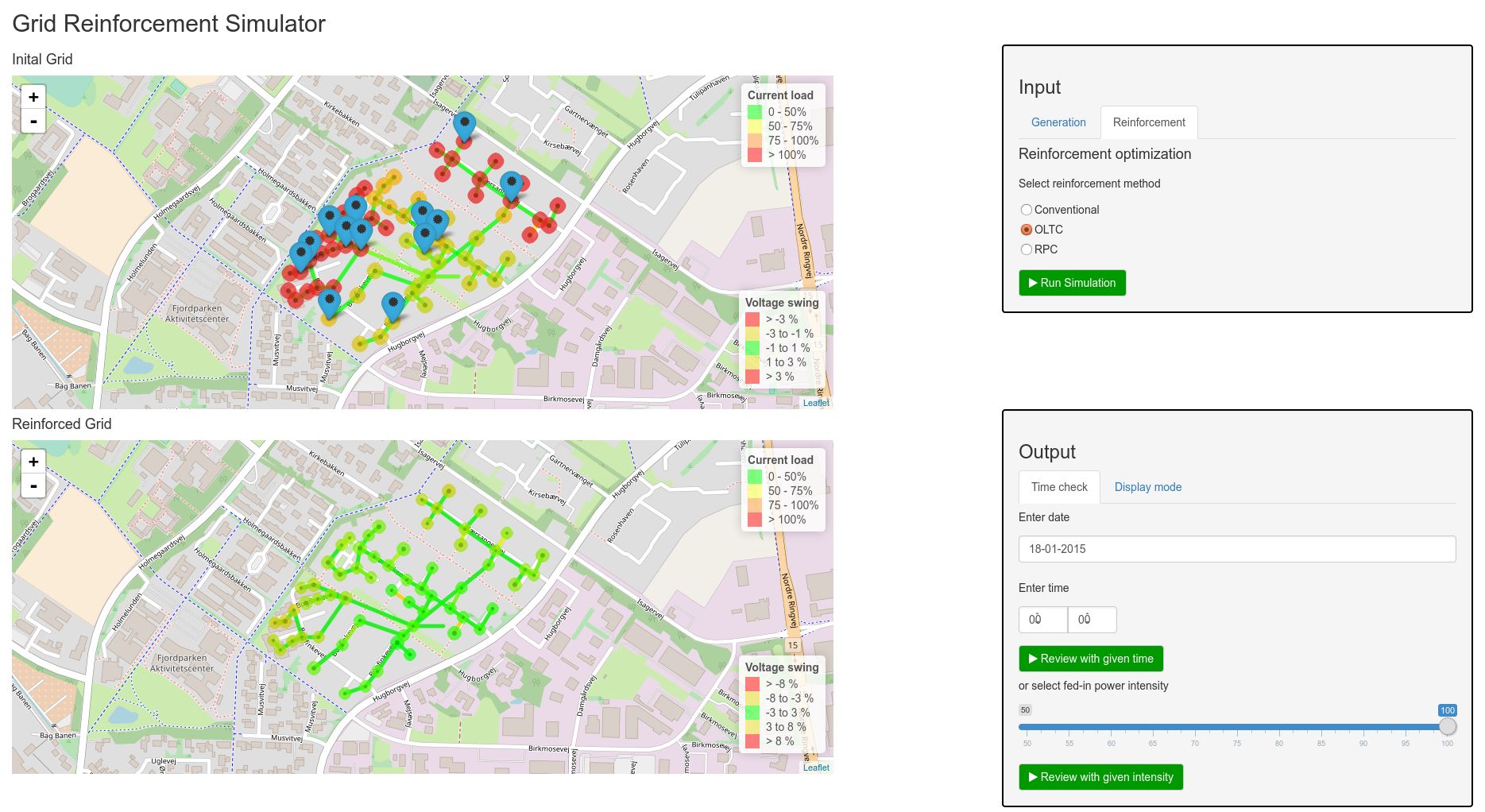

App zur Netzausbauoptimierung. In die App können Stromnetze und die angeschlossenen Erzeuger und Verbraucher geladen werden. Wird das Stromnetz dadurch überlastet, werden die kostenoptimalen Netzausbaumaßnahmen bestimmt. Rechts oben kann der Netzplaner auswählen, welche Technologien für die Netzausbauplanung verwendet werden dürfen.
© Fraunhofer ISE

App to optimize grid expansion. Power grids and the connected generators and consumers can be loaded into the app. If the power grid is overloaded in this way, the cost-optimized grid expansion projects are determined. At the top right, the grid planner can select which technologies may be used to plan the grid expansion.

Due to the energy revolution, the loads in the power grids are changing. Generation plants and additional consumers must be integrated. Subsequently, the need for grid expansion planning measures increases. At the same time, smart grid technologies were developed to reduce the costs of grid expansion. The challenge for grid planners is both increased planning volume and an increase in complexity due to the additional technologies. Therefore, the overall objective of the project is to automate and optimize the grid expansion planning in the low-voltage distribution systems in order to ultimately reduce the grid fees and thus, also the costs for the end customer.

Fraunhofer ISE's contribution to the project’s success is the development of algorithms for optimal grid expansion planning. In this project, the cost-optimal grid expansion is the combination of actual measures to upgrade the grid and the use of flexibilities in order to avoid grid expansion. A further point at which the current grid planning procedure is extended is the integration of measurements in order to estimate grid loads. As a result, the balancing effects of generation and consumption on the grid do not have to be considered in isolation, thus reducing the assumed grid load for planning, which reduces the need for grid expansion. If there are not enough measurements available, grid users are characterized as far as possible with freely available data so that specific load profiles can be generated with the load profile generator of Fraunhofer ISE's synPRO.

Based on the algorithms for grid expansion planning, a grid planning tool is to be developed with the software manufacturer Adapted Solutions. Its grid calculation software Cerberus is linked to the algorithms of grid expansion planning, so that the automated grid expansion planning is integrated into the software environment familiar for asset management. A functional model of the developed software will then be tested by Stadtwerke Wolfhagen (municipal utility of Wolfhagen) so that feedback on the grid planning software can already be given during the project.

Where possible, simple planning guidelines are derived from the findings of the improved grid planning process, which help to reduce the need for grid expansion and at the same time reliably avoid grid overloads.
