WAMS – Heat Pumps – Acoustics and Multi-Source Systems

Duration: 10/2017 - 09/2021
Contracting Authority/ Sponsors:
Zuwendungsgeber: Bundesministerium für Wirtschaft und Energie (BMWi.IIC6); Projektträger: Forschungszentrum Jülich GmbH (PT-J.ESN4)
Project Partners: Fraunhofer-Institut für Bauphysik IBP
Website: Fraunhofer-Institut für Bauphysik IBP
Project Focus:

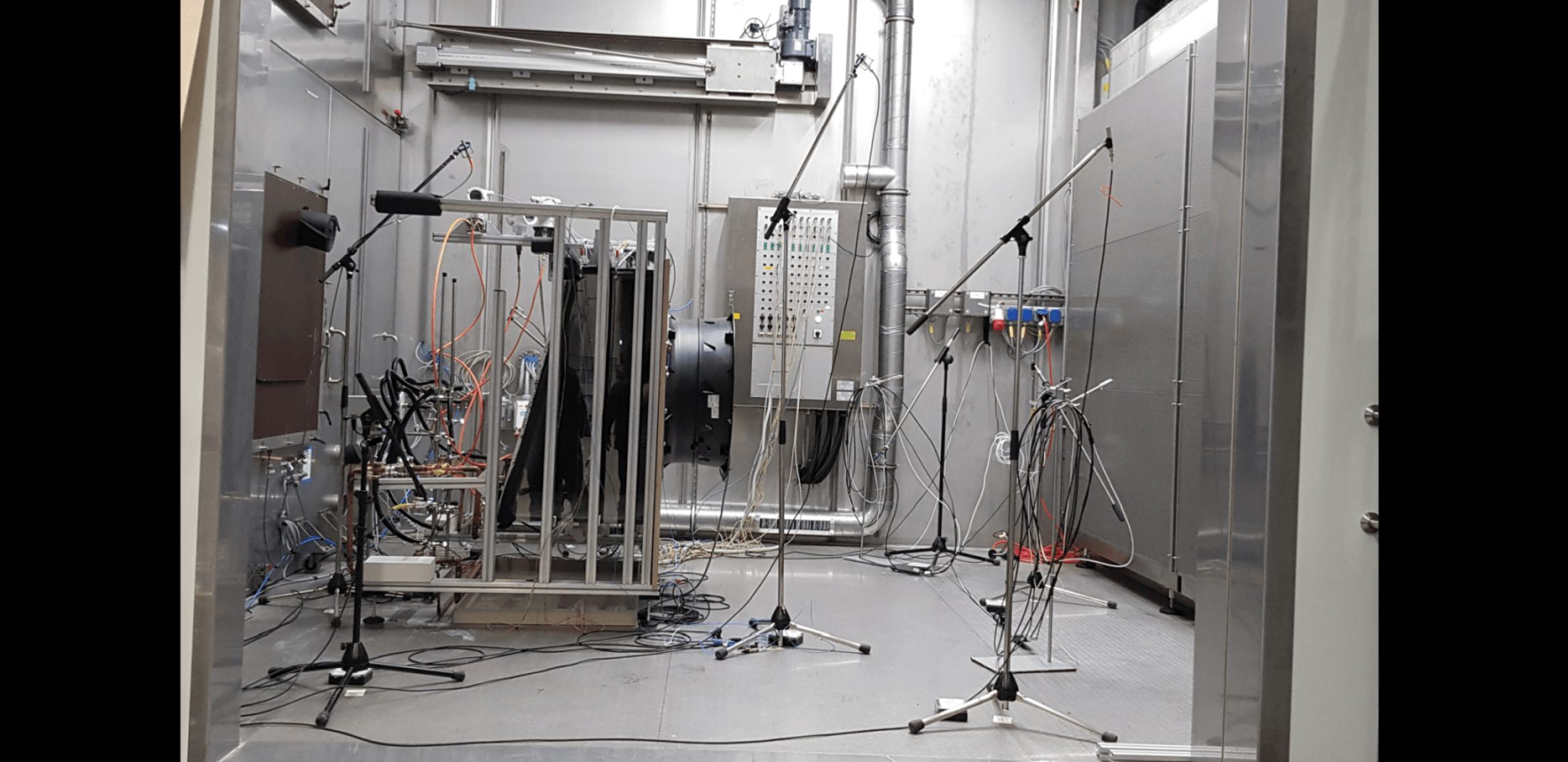

Measurement of airborne noise
© Fraunhofer ISE
Measurement of airborne noise during operation of an adaptable combination of evaporator and fan for air-to-water heat pumps.

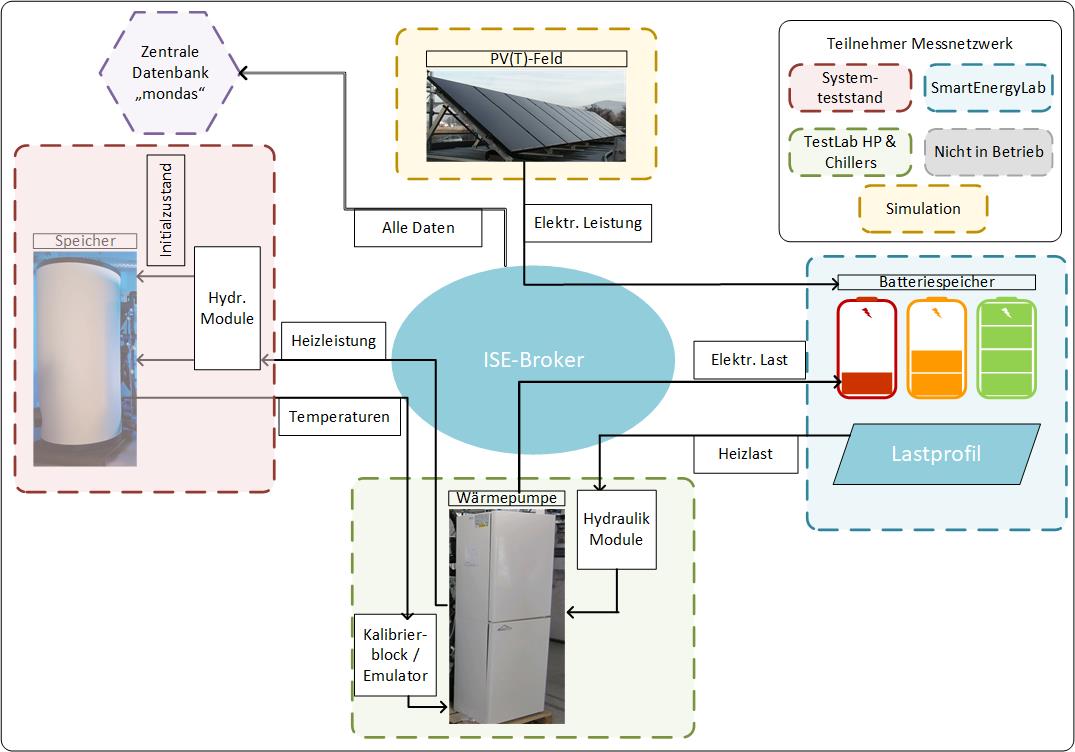

Schematic of the planned test setup in the laboratory
© Fraunhofer ISE
Schematic of the planned test setup in the laboratory for heat pumps and chillers with planned instrumentation and connection to the simulation environment or communication infrastructure.

Electrically driven heat pumps and refrigeration systems are a future technology of the energy transformation. For widespread use in multi-family dwellings or office buildings, a new generation of equipment is required which, in addition to high energy efficiency, also produces low noise emissions.

The "WAMS" project addresses the further development and evaluation of complex supply systems for heating, air conditioning and ventilation, as well as domestic water heating, primarily in the residential building segment. The overall objective is to reduce barriers to market entry by further developing and applying new methods and procedures for evaluating and optimizing the above-mentioned systems. Part of this project is particularly aimed at reducing noise emissions and thus potential noise pollution. A second part of the project focuses on the establishment of transparency regarding the performance of complex hybrid/multivalent systems as well as a faster and more cost-effective evaluation of innovative complex systems.
