Innovative Fine-Line Screen Printing Metallization Reduces Silver Consumption for Solar Cell Contacts

Together with their project partners, scientists at the Photovoltaic Technology Evaluation Center PV-TEC at the Fraunhofer Institute for Solar Energy Systems ISE in Freiburg have succeeded in improving the traditional screen printing process for the fine-line metallization of silicon solar cells. Using specially developed fine-line screens, the project team was able to create contact fingers with a width of merely 19 µm and a height of 18 µm in a single printing step. This means that up to 30 percent less silver is needed, which in turn leads to a significant reduction in manufacturing costs.

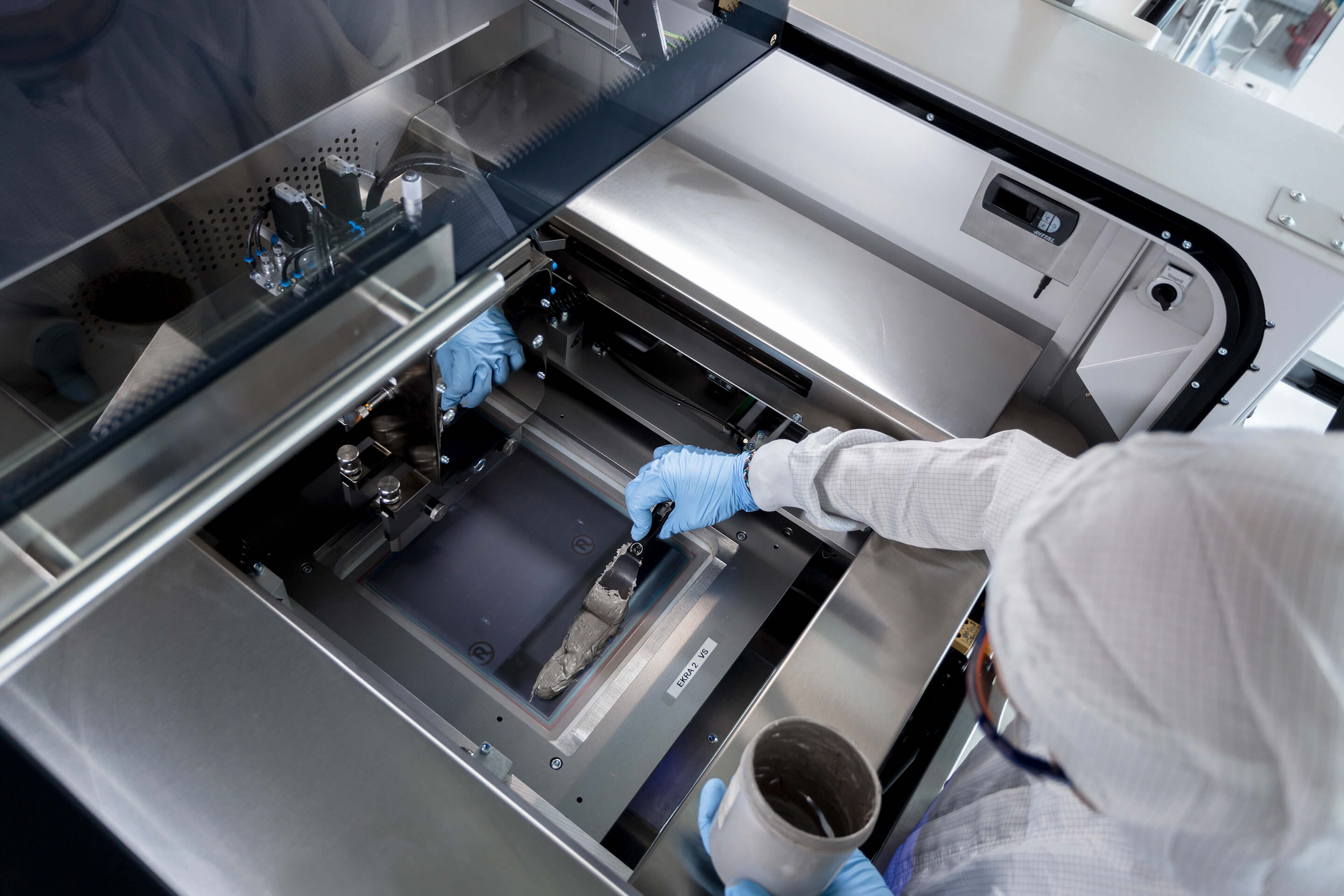

View inside of a screen printing machine
© Fraunhofer ISE / Dirk Mahler
View inside of a screen printing machine.

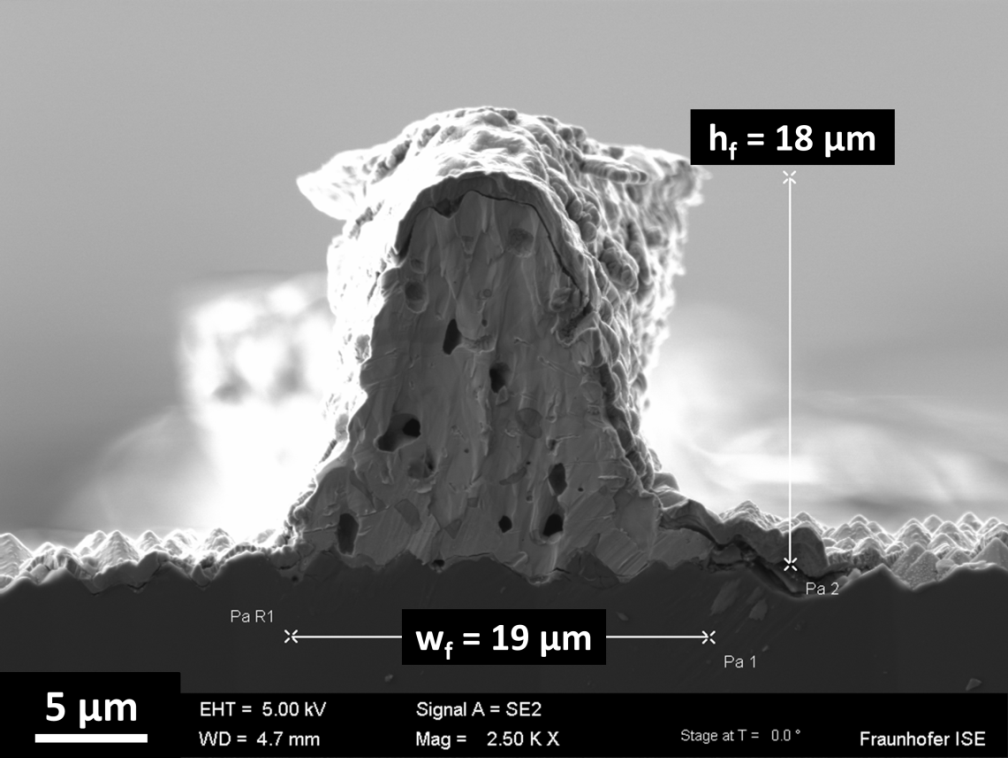

cross-sectional surface of a fine-line screen-printed contact finger
© Fraunhofer ISE
Scanning electron microscope image of the cross-sectional surface of a fine-line screen-printed contact finger.

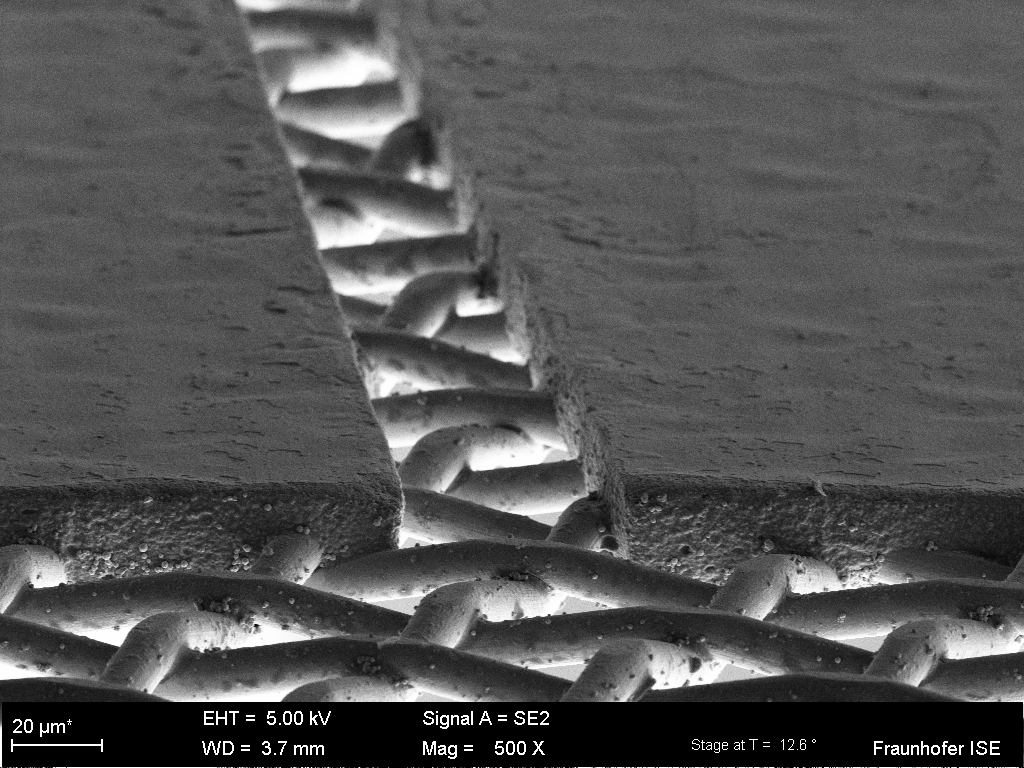

finger opening in a fine-mesh screen
© Fraunhofer ISE, Koenen GmbH
Scanning electron microscope image of a finger opening in a fine-mesh screen.

Silicon solar cells rely on metal electrodes on their front and rear sides to carry the electrical energy generated in the semiconductor material from light irradiation. To this end, a flatbed screen printing process is typically used to print a fine contact grid onto the front side of the cell. This grid should block as little as possible of the active cell surface from exposure to light and must be sufficiently conductive to keep the solar cells’ series resistance low. The technological challenge in the screen printing process lies in creating the narrowest possible continuous contact fingers with a sufficient height for good lateral conductivity. Printing extremely fine contact fingers requires the use of highly engineered specialized screens and metallization pastes in addition to complete mastery of the screen printing metallization process.

“Working together with industry partners in fine-line screen printing metallization, in particular with screen manufacturers Koenen GmbH and Murakami Co. Ltd. as well as screen chemical supplier Kissel + Wolf GmbH, we have managed to reduce the contact fingers’ width to less than 20 micrometers — a reduction of 30 to 40 percent compared with the current industry standard,” explains Dr.-Ing. Andreas Lorenz, project manager in the Printing Technology group at Fraunhofer ISE. Innovative fine-mesh screens were used in the metallization of passivated emitter and rear contact (PERC) solar cells in two independent test series. Using such a screen made it possible to create contact fingers with a width of merely 19 µm and a height of 18 µm in a single printing step. Not only are the contact fingers extremely narrow, their electrical properties are also outstanding. When integrated into modules — particularly with newer technologies such as multi-busbar interconnection with 8 to 15 busbars — they enable a notable reduction of the power loss in the contact fingers. These newly developed screen printing processes require up to 30 percent less silver compared with the current industry standard with a contact finger width of approximately 30 µm.

As part of the experiment, PERC solar cells were metallized using the optimal screen parameters; a nominal finger width of 24 µm was selected due to the limitation with regard to the available number of busbars on the solar cell (in this case 5). The best PERC solar cell in this test series achieved an efficiency of h = 22.1%.

“Using highly engineered screen and paste systems for fine-line metallization, it could be possible to start manufacturing solar cells with nearly invisible contact fingers on an industrial scale in the near future. This would represent a great advantage for applications in integrated photovoltaics, where aesthetic, homogeneous module surfaces are in demand,” says Dr. Florian Clement, Head of the Production Technology — Structuring and Metallization Department at Fraunhofer ISE.

The results of these test series will be presented at two upcoming PV conferences — the 36th EU PVSEC in Marseille, France, and the 29th PVSEC in Xi’an, China.

The collaborative project “FINALE”, which focusses the development of fine-line screen printing processes and in which the researchers partly achieved these results, was funded by the German Federal Ministry for Economic Affairs and Energy BMWi and conducted in collaboration with industry partners Koenen GmbH, Kissel + Wolf GmbH and Wickon Hightech GmbH.

Further fine-line screen printing results which are presented here were realized within a cooperation between Murakami Co. Ltd. and Fraunhofer ISE.
